In the world of industrial processing, efficient material screening plays a crucial role in ensuring product quality and operational productivity. Among the many screening technologies available, multi deck screens have emerged as a highly effective solution for fine particle separation, offering significant advantages over traditional screening machines. A key reason for their superior performance lies in their unique use of double degree of freedom resonance—a principle that enhances vibration control to achieve exceptional screening efficiency.

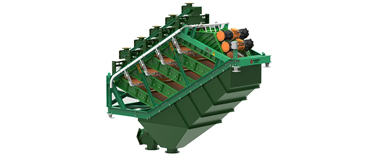

Multi deck screens are specialized vibrating screening machines composed of multiple screen boxes stacked vertically in a staggered manner. Unlike conventional single-layer screens, these machines integrate 1 to 5 layers of independent screening units (screen boxes) into a single compact framework. Each screen box performs feeding and screening operations autonomously, with oversize and undersize materials separated and collected separately for further processing or disposal.
This layered design allows multi deck screens to achieve much greater screening areas within a smaller footprint. For example, a five-layer stack can effectively replace multiple single-layer machines, significantly boosting throughput and efficiency without requiring additional floor space.
The core innovation behind multi deck screens is their adoption of the double degree of freedom resonance principle. To understand this, let's first unpack what it means.
Degree of freedom in mechanical systems refers to the number of independent ways in which a system can move. A single degree of freedom vibrating system oscillates in one mode (typically a simple back-and-forth or up-and-down motion).
Double degree of freedom means the system can vibrate in two independent modes simultaneously. In multi deck screens, this allows for a combination of different vibration patterns, leading to more complex and effective movement.
In practical terms, the multi deck screen uses a single vibration motor to create a composite vibration that combines:
Linear vibration of the screen box: This moves the entire screen frame back and forth in a straight line.
Mesh vibration caused by vibrating rod rows: Small rods vibrate the screen mesh itself, shaking the particles directly and preventing clogging.
By blending these two vibration types, the system enhances material stratification and passage through the mesh, improving screening accuracy and speed.
One of the main challenges in screening is to efficiently separate particles based on size. For fine particles, this becomes increasingly difficult due to the tendency of smaller materials to clog or blind the screen mesh.
The double degree of freedom vibration allows:
The entire screen box to oscillate, moving material along the screen surface.
Simultaneously, the vibrating rods shake the mesh itself, causing the particles to loosen and pass through more easily.
This dual action reduces the chance of mesh blockage (also known as screen blinding) and maintains a continuous screening flow, resulting in better separation of fine particles.
Because multi deck screens combine multiple layers within one machine, and each layer vibrates with this compound motion, the overall screening area and capacity increase dramatically.
The double degree of freedom resonance contributes by:
Ensuring that material distribution is even across the entire screen surface.
Maintaining a consistent and high vibration energy that propels material efficiently through each mesh layer.
This allows the machine to handle large volumes of feedstock without compromising screening quality or speed. Typically, fine particle screening efficiency can exceed 90%, a significant improvement over traditional single-layer vibrating screens.
Several design features enable the effective use of double degree of freedom resonance in multi deck screens:
Multi deck screens typically use high-quality vibration motors, such as American Martin motors, known for their energy efficiency, stability, and reliable performance. A single vibration motor drives the entire multi-layer assembly, creating the complex composite vibration.
These are specialized rods installed on the screen surface that generate fine mesh vibrations. By striking the screen mesh at high frequency, they help prevent material accumulation and blinding.
Each screen box is lined with high-wear-resistant rubber or polyurethane panels. These materials resist abrasion and extend the service life of the screen surface, even under constant vibration and heavy loads.
Multi deck screens often incorporate variable frequency drives to adjust vibration frequency and intensity. This allows operators to fine-tune vibration parameters depending on the material type and processing requirements. The ability to set intermittent, instant, or strong vibration modes also helps maintain non-blinding screening conditions.
Stacking multiple screen boxes vertically allows a large screening area within a compact footprint. This is ideal for plants where floor space is limited but processing capacity demands are high.
The dual vibration movement ensures more effective particle separation and reduces the risk of mesh blockage, yielding cleaner output with less material waste.
Thanks to polyurethane wear-resistant panels and advanced vibration distribution, multi deck screens experience less wear and tear. This results in longer service intervals and lower downtime, improving overall operational efficiency.
Using a single vibration motor to generate composite vibrations reduces energy consumption compared to running multiple separate machines. High-quality motors also contribute to energy savings while maintaining powerful vibration performance.
Multi deck screens are widely used across many industries, especially where fine particle separation is essential:
Mining and Mineral Processing: For separating ore particles by size before further processing or refining.
Chemical Industry: Screening powders and granules to ensure product uniformity.
Food Industry: Sorting ingredients or separating fine particles in flour and sugar production.
Pharmaceutical Manufacturing: Screening active ingredients and excipients for quality control.
Recycling Plants: Sorting shredded materials and separating contaminants.
To maximize the benefits of multi deck screens employing double degree of freedom resonance, consider the following best practices:
Ensure the machine is installed on a stable foundation, with all components securely fixed to prevent unwanted vibrations that could damage the equipment or affect screening quality.
Use frequency converters to adapt vibration frequency and strength to the material characteristics. This helps maintain optimal screening performance and prevents mesh clogging.
Inspect and replace polyurethane panels and rubber linings before they become excessively worn to maintain screening accuracy and avoid costly downtime.
Keep the vibration motor in good condition with periodic checks on bearings, balancing, and electrical parameters to ensure stable vibration output.
Multi deck screens utilize the advanced principle of double degree of freedom resonance, combining linear movement of the screen box with dynamic mesh vibration to achieve superior particle separation and enhanced screening performance. Their innovative design not only saves valuable space but also ensures energy-efficient operation, making them an excellent choice for industries demanding precise and high-capacity fine screening.
By understanding the working principles and adhering to proper operational practices, users can greatly improve screening efficiency, extend the service life of equipment, and minimize maintenance costs. Multi deck screens represent more than just machinery—they offer a comprehensive solution to today’s complex screening challenges.
For those interested in exploring cutting-edge multi deck screening technology and seeking reliable, high-quality equipment, Shanghai Kminda Tech. Co., Ltd. is a trusted partner. With their expertise and innovative solutions, they can help optimize your screening processes to meet the demands of modern industry. Visit their website or contact them directly to learn more and find the best screening solution tailored to your needs.
