Screening is a fundamental process across many industries, especially mining, mineral processing, construction, and recycling. It involves separating particles by size to ensure product quality and improve process efficiency. Two common types of screening machines used today are multi deck screens and traditional screens. Understanding the differences between these two is crucial for choosing the right equipment to meet specific operational needs.

What Are Traditional Screens?

Traditional screens, also known as single-deck screens or conventional vibrating screens, have been the industry standard for decades. They typically consist of one screen deck with a vibrating mechanism that shakes the screen surface, allowing particles smaller than the mesh openings to pass through.

Traditional screens vary in size and configuration, including horizontal, inclined, and circular vibrating screens. They are commonly used for coarse to medium particle size separation in applications like quarrying, mining, and aggregate production.

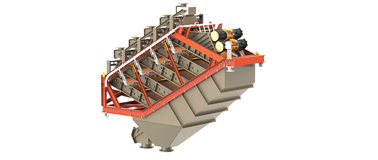

What Are Multi Deck Screens?

Multi deck screens differ by having multiple screen decks stacked vertically within a single frame. Instead of processing the material on a single screen surface, multi deck screens simultaneously separate particles into different size fractions across several layers.

These machines integrate multiple vibrating screen boxes, often 2 to 5 layers, operating independently but sharing the same vibration source. This design optimizes the screening area within a compact footprint and increases screening capacity and efficiency.

Key Differences Between Multi Deck Screens and Traditional Screens

1. Screening Area and Capacity

• Traditional Screens:
  A single screen deck provides a limited screening area. To increase capacity, multiple single-deck screens are often installed side by side, which requires more space and infrastructure.

• Multi Deck Screens:
  Multiple layers stacked vertically significantly increase the screening area within the same footprint. This results in higher throughput and capacity without needing additional floor space.

• Summary: Multi deck screens offer a much larger effective screening area compared to traditional single-deck screens in the same or smaller space.

2. Space and Footprint

• Traditional Screens:
  Require more horizontal space when multiple units are used to increase capacity. This can be challenging in plants with limited available space.

• Multi Deck Screens:
  Designed to save floor space by stacking decks vertically, making them ideal for compact or space-constrained installations.

• Summary: Multi deck screens are more space-efficient, an important consideration in modern processing plants.

3. Screening Precision and Size Separation

• Traditional Screens:
  Typically separate materials into two fractions: undersize (passing through) and oversize (retained). More size categories require multiple separate screens.

• Multi Deck Screens:
  Can simultaneously classify materials into multiple size ranges on different decks. Each deck has a different mesh size, enabling precise multi-fraction separation in one machine.

• Summary: Multi deck screens provide more detailed and accurate size separation in one compact system.

4. Equipment Complexity and Operation

• Traditional Screens:
  Simpler design with one deck and straightforward operation. Easier to maintain due to fewer components.

• Multi Deck Screens:
  More complex due to multiple decks and independent discharge points. They often use advanced vibration technology (e.g., double degree of freedom resonance) and require precise tuning.

• Summary: Multi deck screens may require more skilled operation and maintenance but offer greater performance benefits.

5. Screening Efficiency and Throughput

• Traditional Screens:
  Limited screening surface area means lower throughput unless multiple screens are used. Screening efficiency can be affected by mesh clogging or blinding, especially with fine or sticky materials.

• Multi Deck Screens:
  The increased screening area and specialized vibration patterns enhance material stratification and reduce blinding, resulting in screening efficiencies often exceeding 90%.

• Summary: Multi deck screens generally provide higher efficiency and throughput for fine and complex materials.

6. Vibration Technology

• Traditional Screens:
  Use basic vibration motors to create linear or circular vibration of the single screen deck.

• Multi Deck Screens:
  Often employ advanced vibration principles such as double degree of freedom resonance, combining linear frame motion with localized mesh vibration to improve particle movement and prevent clogging.

• Summary: Multi deck screens use more sophisticated vibration mechanisms to enhance screening performance.

7. Maintenance and Durability

• Traditional Screens:
  Fewer parts mean easier maintenance but may suffer more wear if processing abrasive materials. Screen replacement and wear parts are usually standard.

• Multi Deck Screens:
  Use wear-resistant materials like polyurethane panels and rubber liners on screen boxes to extend life. The design reduces wear on individual components, but maintenance can be more involved due to complexity.

• Summary: Multi deck screens may offer longer wear life and durability but require scheduled maintenance to maximize performance.

Advantages of Multi Deck Screens Over Traditional Screens

• Higher Capacity in Less Space: Multi deck screens maximize screening area vertically, increasing throughput without needing a larger footprint.

• Multi-Size Separation: Ability to separate feed material into several size fractions simultaneously improves sorting precision.

• Improved Screening Quality: Advanced vibration and anti-blinding technology reduce mesh clogging and increase screening efficiency.

• Durable Materials: Use of polyurethane and rubber reduces wear and extends service life, lowering operating costs.

• Energy Efficient: Single vibrating source drives multiple decks, saving power compared to multiple single-deck screens.

• Reduced Equipment Count: Consolidation into one machine simplifies layout and reduces auxiliary equipment needs.

When to Choose Traditional Screens

Despite the many advantages of multi deck screens, traditional single-deck screens remain relevant and preferred in certain situations:

• Simple Screening Needs: When only a coarse separation is required, and only two size fractions are needed.

• Limited Budget: Traditional screens often have a lower initial cost and simpler maintenance.

• Easy Maintenance and Operation: Less complexity suits operations with limited technical staff or training.

• Large Particle Sizes: For very coarse or heavy materials, traditional inclined or circular vibrating screens may be more robust.

• Supplementary Screening: Sometimes used as secondary screens after primary processing.

When Multi Deck Screens Are the Better Choice

Multi deck screens shine in conditions where:

• Space Is Limited: Plants with tight floor plans benefit from vertical stacking.

• High Throughput Is Required: Operations needing to process large volumes without expanding space.

• Fine Particle Separation: Multi deck screens perform better with fine, sticky, or complex materials due to advanced vibration technology.

• Multi-Fraction Separation: When product sorting into multiple size ranges is necessary.

• Reduced Maintenance Downtime: Longer-lasting panels and anti-blinding designs minimize downtime.

Industry Applications for Both Screen Types

Traditional Screens Are Common In:

Quarrying and aggregate production

Initial coarse screening stages in mining

Recycling and waste sorting

Construction and demolition debris separation

Multi Deck Screens Are Ideal For:

Mineral processing plants with high volume and precision screening needs

Coal screening with multiple grades separation

Tailings management and fine particle classification

Chemical and food industries requiring multi-fraction sorting in compact spaces

Conclusion

Understanding these differences empowers plant operators and engineers to optimize screening processes, reduce costs, and improve overall product quality. If you are planning a new screening system or considering an upgrade, it’s essential to carefully assess your material characteristics, production goals, and plant layout to select the best screening solution.

For expert advice, innovative screening solutions, and tailored equipment options, we highly recommend reaching out to Shanghai Kminda Tech. Co., Ltd. Their experienced team specializes in advanced multi deck and traditional screening technologies and can help you find the perfect fit for your operation. Visit their website or contact them directly to learn more and get personalized support.
