In mining and mineral processing, efficient and accurate screening of materials is crucial for maximizing productivity and ensuring high-quality end products. Screening is one of the fundamental processes that separates valuable ore from waste and prepares materials for further refinement. Traditional screening methods, while effective to some extent, often struggle with handling fine particles, high throughput, and space constraints.
This is where multi deck screens come into play, offering innovative solutions to many challenges faced by the mining industry. By integrating multiple screening layers in a single compact machine, multi deck screens not only boost productivity but also improve product quality, reduce maintenance needs, and lower operational costs.

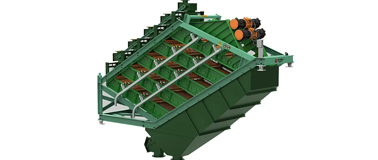

Multi deck screens are vibrating screening machines that stack several screen decks (layers) vertically. Instead of a single screen deck processing material, multi deck screens incorporate two or more layers, often up to five, in a compact frame. Each deck operates independently to separate materials by size, allowing simultaneous classification of different particle sizes.
This vertical stacking enables a significantly larger screening area without expanding the machine’s footprint, which is a critical advantage in space-limited processing plants. The design also allows for precise particle separation across multiple size ranges, improving sorting accuracy and throughput.
Screening separates particles based on size, which is essential in mining for several reasons:
Ore Classification: Separating valuable ore from waste rock or gangue.
Process Optimization: Ensuring downstream processes (like crushing, grinding, flotation) receive appropriately sized feed material.
Product Quality: Producing consistent particle sizes for customers or further processing.
Equipment Protection: Preventing oversized particles from damaging downstream machinery.
Environmental Compliance: Managing tailings and waste in an efficient manner.
Given these critical roles, efficient screening technology can directly influence the profitability and sustainability of mining operations.
Mining operations often face limitations on plant size and available floor space. Multi deck screens solve this issue by stacking multiple screening layers vertically. This design increases the effective screening area significantly compared to traditional single-deck machines.
By processing multiple size fractions simultaneously, multi deck screens reduce the need for multiple separate screens. This consolidation cuts down on equipment footprint, installation costs, and maintenance complexity, allowing mining plants to handle more material in less space.
Multi deck screens are engineered to provide high-frequency vibration combined with composite motion. This results in efficient particle stratification, where smaller particles move quickly through the mesh while larger particles move toward discharge outlets.
The multi-layer structure allows different sized material to be separated on each deck, improving sorting precision. As a result, the screening efficiency often exceeds 90%, meaning a higher percentage of correctly classified particles.
Mining materials can vary widely, from coarse rock to fine sand-like particles mixed with moisture or clay. Multi deck screens are highly versatile, accommodating different types of ore and mineral feeds. With adjustable vibration frequencies and amplitudes, operators can fine-tune the screening process to adapt to changes in material characteristics or production demands.
Product quality in mining and mineral processing depends largely on the consistency and purity of separated material fractions. Multi deck screens contribute to quality improvement in several ways:
Each deck in a multi deck screen uses a mesh with a specific opening size, allowing accurate segregation of materials into uniform size groups. This precision reduces contamination of product streams with unwanted particle sizes and ensures compliance with customer or process specifications.
The independent operation of each deck means oversize and undersize material are collected separately without cross-contamination. This separation is critical in producing high-purity concentrates or avoiding waste material in valuable ore batches.
Fine particles and moist materials often cause mesh blinding, where particles clog the screen openings, reducing throughput and screening accuracy. Multi deck screens often employ vibrating rods or special anti-blinding designs to maintain open mesh surfaces, ensuring continuous, high-quality screening.
Many multi deck screens operate using the principle of double degree of freedom resonance. This means the machine produces composite vibration combining linear screen frame motion with localized mesh vibrations. This motion helps loosen particles and prevents clogging, ensuring smoother material flow and better separation.
Mining materials can be highly abrasive. Multi deck screens often use polyurethane panels that resist wear much better than traditional metal meshes. These panels provide longer service life and maintain screening performance over extended periods, reducing downtime and replacement costs.
Advanced multi deck screens incorporate variable frequency drives allowing operators to adjust vibration frequency and intensity. This flexibility optimizes screening for varying ore characteristics and processing requirements, improving efficiency and adaptability.
Multi deck screens are used to separate ore by size before further processing such as crushing or grinding. Accurate classification reduces energy consumption in subsequent processes and improves overall recovery rates.
In mining waste management, screening helps separate fine tailings from coarser materials. This separation aids in recycling process water, reducing environmental impact, and managing disposal efficiently.
Multi deck screens are widely used in coal processing plants to separate coal into different grades, removing impurities and preparing the coal for combustion or further refinement.
Beyond ores, mining operations producing aggregates for construction use multi deck screens to sort materials like sand, gravel, and crushed stone by size, ensuring quality control.
Vertical stacking drastically reduces floor space requirements, allowing mining plants to increase capacity without expanding facilities.
Reducing the number of separate machines and using energy-efficient motors lowers both capital expenditure and operating costs.
Higher screening efficiency and precision improve product value and process flow, leading to better profitability.
Wear-resistant materials and effective anti-blinding features mean longer service intervals and less frequent screen replacements.
In mining and mineral processing, multi deck screens have proven to be a game-changer, enabling higher throughput, improved product quality, and more efficient use of space and resources. By integrating multiple screening layers into one machine and utilizing advanced vibration technology, they address many of the limitations of traditional screening equipment.
Mining operations that adopt multi deck screening technology can expect:
Enhanced screening capacity within smaller footprints,
Precise particle size separation for better product purity,
Reduced maintenance needs and longer equipment life,
Greater flexibility and adaptability to varying feed materials.
As the mining industry demands greater productivity and quality, multi deck screens will remain crucial to achieving operational excellence and sustainable growth. For mining professionals considering system upgrades or new installations, gaining a deep understanding of multi deck screen advantages is key to maintaining competitive edges.
To explore advanced multi deck screening solutions and receive expert guidance tailored to your mining needs, we recommend contacting Shanghai Kminda Tech. Co., Ltd. Their experienced team offers innovative, reliable equipment and comprehensive support to help optimize your operations. Visit their website or reach out directly to learn more and take your screening processes to the next level.
