What Defines a Rubber Screen Panel?

A rubber screen panel is a durable, flexible screening medium made from highly resilient rubber compounds. Unlike traditional steel or polyurethane, rubber panels are specifically designed to excel in applications involving heavy, coarse, and high-impact materials.

The key advantages that make rubber screens the preferred choice for tough applications are:

l Superior Shock Absorption: Rubber absorbs the kinetic energy of falling materials, drastically minimizing wear on the panel itself and protecting the supporting screen deck structure.

l Anti-Blinding Flexibility: The elastic, flexible nature of the rubber surface resists blinding and clogging, especially when processing wet or sticky materials.

l Noise and Vibration Dampening: Rubber naturally dampens mechanical vibrations and impact sounds, leading to a safer, quieter working environment and reducing noise regulation compliance issues.

Balancing Open Area, Durability, and Cost

The selection process involves a crucial trade-off:

Carefully analyze your application's material type, size distribution, and desired throughput to strike the right balance between capacity and longevity for maximum cost-effectiveness.

Key Factors for Optimal Rubber Screen Panel Selection

1. Screening Type and Material Characteristics

The screen panel must be matched to the phase of screening and the material being processed:

• Coarse Screening: Requires robust, thicker panels with higher hardness ratings (Shore A) for maximum impact resistance against large, heavy feed materials.

• Fine Separation: Requires thinner panels with smaller apertures to prioritize separation accuracy and throughput over pure wear life.

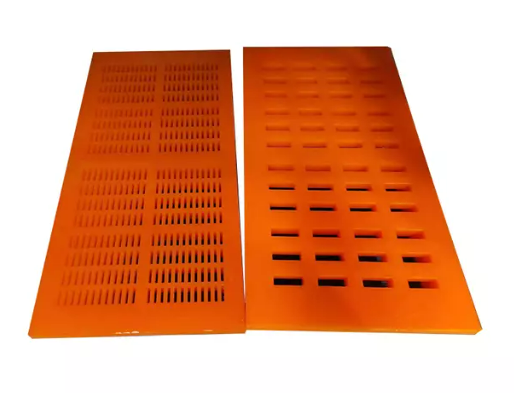

2. Aperture Shape, Size, and Layout

Aperture design is crucial for screening efficiency and preventing material blinding:4

The aperture size must be precisely aligned with the required separation cut point, remembering that smaller apertures enhance precision at the cost of potential throughput.

3. Panel Thickness and Deck Inclination

• Panel Thickness: Directly impacts wear life. A thicker panel requires a larger aperture to achieve the same efficiency as a thinner panel, especially on an inclined deck.

• Deck Inclination: Steeper angles generally increase material velocity, which can improve throughput but increase wear. The panel's design must compensate for the screen deck's angle.

4. Hardness Rating (Shore A) and Flexibility

The Shore A hardness determines the rubber's flexibility and wear resistance:

• Softer Rubbers (40–50 Shore A): Highly flexible, offering exceptional anti-blinding properties.6 Ideal for wet, sticky, or fine materials.

• Harder Rubbers (60+ Shore A): Higher impact and abrasion resistance, providing extended wear life. Best suited for dry, coarse, and highly abrasive materials.

5. Screening Environment: Wet vs. Dry Operations

• Wet Screening: Choose softer compounds (lower Shore A) with high flexibility to utilize the anti-blinding "pumping" action that prevents material buildup.

• Dry Screening: Choose harder compounds (higher Shore A) to prioritize abrasion resistance and longevity.

6. Modular vs. Tensioned Panels

Modular panels are overwhelmingly preferred in modern operations due to their ease of maintenance.

Comparison with Other Media

For complex or transitional screening stages, hybrid solutions combining rubber (for impact resistance) and polyurethane (for finer, highly abrasive areas) may offer the best overall performance.

Practical Performance and Financial Indicators

ROI and Total Cost of Ownership (TCO)

While rubber panels often have a higher initial purchase price, their exceptional wear life and the resulting reduction in maintenance frequency, labor costs, and downtime result in a lower TCO and a superior long-term Return on Investment (ROI).

Sustainability Benefits

The shock-damping properties of rubber reduce the mechanical strain on the screen drive, leading to marginal but consistent energy savings. Furthermore, choosing panels made from recycled rubber compounds supports circular economy goals.

Expert Recommendations and Maintenance

Common Mistakes to Avoid

1. Ignoring Material Behavior: Failure to account for particle size, moisture content, and abrasiveness will inevitably lead to premature panel failure or blinding.

2. Overlooking Aperture Design: Do not choose a "standard" square aperture if your material is wet or prone to sticking; select slotted or staggered designs.

3. Neglecting Installation: Improper tensioning (for tensioned screens) or poorly fitting modular panels will lead to vibration, premature wear, and screen failure.

Selection Checklist and Validation

1. Define Material: Abrasiveness, moisture, particle shape, and size range.

2. Define Screen Parameters: Deck inclination, stroke, speed, and desired separation cut point.

3. Choose Hardness: Match Shore A to impact/abrasion needs.

4. Choose Aperture: Match shape and size to cut point and anti-blinding requirements.

5. Consult: Engage with manufacturers like Kminda and technical teams to leverage their expertise for a customized solution.

6. Validate: Always conduct trial runs to confirm that the selected panel meets your throughput, efficiency, and wear-life benchmarks before full-scale deployment.

Conclusion

Choosing the right rubber screen panel is a strategic investment in efficiency and sustainability. By systematically analyzing your application's material characteristics, environment, and throughput needs, and by partnering with experienced suppliers, you can maximize your screening value, extend equipment lifespan, and ensure long-term operational success.
