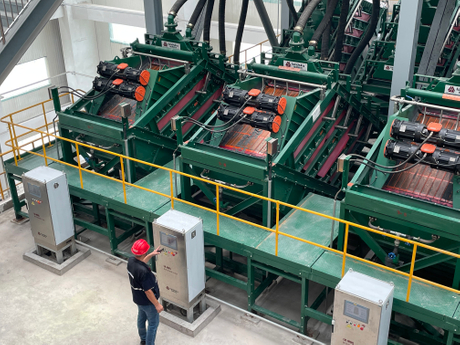

Screening wet, sticky, or near-size fine materials creates severe operational bottlenecks in processing plants. Facilities face compounding losses from rapid screen blinding and unplanned downtime. Conventional vibrating screens fail when handling high-moisture or clay-heavy feeds because their static wire meshes quickly clog. This leads to lost throughput, increased maintenance hours, and compromised product quality. Operators are forced to halt production, lock out the equipment, and manually clear the decks. We need a mechanical approach designed specifically for these difficult materials. The flip flow screen provides a specialized, high-acceleration separation technology. It is engineered to eliminate pegging and blinding entirely. This guide breaks down the mechanics, industrial applications, and technical evaluation criteria for implementing this advanced screening solution.

• Mechanism: Flip flow screens utilize a double-mass vibration principle to alternately stretch and relax flexible polyurethane mats, generating extreme acceleration forces (up to 50G) that expel sticky materials.
• Primary Value Proposition: They drastically reduce downtime associated with manual screen cleaning and prevent material blinding in high-moisture applications without the need for added water.
• Cost Dynamics: While requiring a higher initial Capital Expenditure (CapEx) than conventional screens, they typically yield lower Operational Expenditure (OpEx) in difficult applications due to reduced wear, lower energy consumption per ton, and higher continuous throughput.
• Implementation Reality: Successful integration requires careful structural engineering to handle dynamic loads, robust support structures, and precise tuning of the resonance system during commissioning.

The Core Mechanics: Flip Flow Screen Working Principle

Anatomy of the System

Understanding this technology requires looking at its physical construction. Five core structural components drive the system. First is the main screen frame. This heavy carbon steel structure anchors the primary movement and houses the drive components. Second is the floating screen frame, often called the sub-resonant frame. This lighter structure moves independently of the main frame. Third is the flexible polyurethane screen mesh. This acts as the actual screening surface and the physical connection point between the two frames. Fourth is the excitation mechanism, which includes the eccentric shaft, spherical roller bearings, and the drive motor. Finally, the heavy-duty support structure holds the entire assembly and isolates vibrations from the surrounding plant infrastructure using massive coil springs or rubber buffers.

Double-Mass Resonance System

The interaction between the main frame and the floating frame creates the core movement. A single drive generates a double vibration. The eccentric drive directly actuates the main frame. The main frame then transfers energy to the floating frame through the shear rubber mounts. These mounts act as heavy-duty energy storage devices. The system operates near its natural resonance frequency. Operating near resonance minimizes the required energy input while maximizing the kinetic output. The motor only needs to maintain the momentum rather than forcing every single movement against gravity.

1. The electric motor rotates the eccentric shaft at speeds typically between 700 and 800 RPM.
2. The eccentric shaft forces the main heavy frame into a circular or linear vibratory motion.
3. The shear rubber mounts compress and expand, absorbing the kinetic energy from the main frame.
4. The mounts release this energy into the lighter floating frame, causing it to move out of phase with the main frame.
5. The resulting harmonic resonance sustains the continuous relative motion between the two frames with minimal electrical power draw.

The "Flip-Flow" Motion and Polyurethane Mats

The physical action defines the name of the equipment. Because the two frames move out of phase with each other, the distance between their cross members constantly changes. The flexible polyurethane screen mats are bolted or pinned across these alternating cross members. As the frames move apart, the mat stretches tight. As the frames move together, the mat goes slack. This creates an elastic, oscillating motion.

We describe this as a trampoline effect. The mesh stretches tight and then relaxes rapidly, usually 700 to 800 times per minute. This motion transfers high-frequency vibration directly to the material bed. It does not rely solely on the vibration of the heavy steel frame. The direct energy transfer makes the separation process highly efficient, physically throwing the material upward and forward along the deck.

High-Acceleration Forces and Material Stratification

This trampoline effect generates massive physical forces. The screen deck achieves 30G to 50G of acceleration. Conventional screens rarely exceed 5G. These extreme G-forces physically break the surface tension of wet, sticky particles. The violent upward thrust shatters agglomerated clumps of clay and fines.

When a 5mm particle of wet coal or clay hits a static wire mesh, capillary action holds it in place. The 50G acceleration of the flip flow screen breaks that capillary bond instantly. It forces finer particles to the bottom of the material bed while the coarse material stays on top. This rapid stratification ensures efficient separation. The high acceleration prevents any material from settling into the mesh openings, keeping the open area clear for continuous throughput.

Flip Flow Screen vs. Conventional Vibrating Screens

Overcoming Pegging and Blinding

Screening failures usually fall into two categories. Pegging occurs when near-size particles wedge tightly into the mesh openings. Blinding happens when fine, wet materials coat the wire mesh, eventually bridging over the holes entirely. A conventional screen uses a static mesh. It is highly prone to blinding when material moisture exceeds five percent. The static wires offer a stable surface for wet fines to accumulate.

The dynamic, self-cleaning action of the polyurethane mats prevents this accumulation. The constant stretching physically deforms the shape of the aperture. If a near-size rock wedges into a square hole, the subsequent stretching of the mat elongates that hole, spitting the rock out. The high G-forces simultaneously throw off any sticky fines trying to coat the polyurethane surface.

Operators dealing with high-clay ores or wet weather conditions often spend hours each shift manually beating static screens with hammers to clear blinded decks. The elastic motion eliminates this requirement entirely. The deck remains clean and open regardless of the feed moisture content, ensuring the cut point remains accurate throughout the entire production shift.

Energy Efficiency and Drive Mechanisms

Power draw is a primary metric for plant operations. The near-resonance double-mass system requires surprisingly small drive motors. Direct-drive conventional screens of similar capacity need much larger motors. A conventional screen forces a single, massive steel frame to vibrate against gravity, requiring massive torque to start and maintain the stroke.

The double-mass system uses the shear rubber mounts to store and release energy. Once the machine reaches its operating speed, the harmonic resonance takes over. The motor simply tops up the kinetic energy lost to friction and material displacement. This results in significantly lower kilowatt-hours per ton of processed material. The smaller motors also require lighter electrical infrastructure, smaller variable frequency drives, and less robust cabling.

Operational Efficiency and Maintenance Labor Reduction

Procurement and engineering teams must evaluate the long-term operational impact of their equipment choices. The engineering complexity and specialized components of this technology require a specific maintenance approach. However, the operational efficiency comes from recovered production hours. You eliminate the daily manual labor previously spent clearing clogged screens.

The polyurethane media offers an extended wear life compared to woven wire cloth. Wire cloth wears rapidly at the intersection points of the weave. Polyurethane absorbs impact energy rather than resisting it rigidly. The continuous, uninterrupted throughput dramatically lowers the maintenance labor hours over the life of the equipment. Plant personnel can be reallocated from screen cleaning duties to preventative maintenance tasks elsewhere in the facility.

Primary Industrial Applications and Success Criteria

Mineral Processing and Coal Preparation

Raw coal sizing presents major challenges due to inherent moisture. Mineral ores often contain high clay content. A flip flow screen excels in these environments. It maintains strict cut points without the need for added water. Dry screening eliminates the need for expensive slurry handling, thickeners, and dewatering equipment downstream. Processing plants can separate 3mm to 9mm fractions efficiently even when the run-of-mine material is saturated from heavy rainfall.

• Maintaining a clean 3mm or 6mm cut without blinding.
• Eliminating the need for wet screening and subsequent thermal drying.
• Handling variable feed moisture ranging from 5% to 15% without adjusting the drive parameters.
• Preventing clay agglomerations from carrying over into the coarse product stream.

Waste Recycling and C&D Debris

Municipal solid waste and compost are notoriously difficult to screen. Shredded wood and construction debris contain fibrous materials. These fibers wrap around the static decks of conventional screens and blind trommel drums. The dynamic motion of the polyurethane mats resists this entanglement. The violent flipping action effectively bounces heavy glass and plastics across the deck while damp organics fall through the apertures.

• Resisting entanglement from plastic bags, textiles, and shredded wood fibers.
• Effectively separating heavy aggregates from damp, sticky compost.
• Maintaining high throughput volumes despite highly variable feed densities.
• Reducing manual intervention required to clear jammed debris from the screen deck.

Aggregates and Manufactured Sand

Quarries producing manufactured sand face strict gradation requirements. Fine aggregate separation usually involves 2mm to 10mm cuts. Washing the sand is not always environmentally or economically viable due to water scarcity or permitting restrictions. Dry screening damp manufactured sand requires high acceleration to remove unwanted micro-fines. The technology provides consistent gradation in these damp conditions.

• Keeping the -75 micron micro-fine content below specified limits.
• Preventing deck blinding during morning dew or light rain conditions.
• Handling the highly abrasive nature of crushed granite or basalt using thick polyurethane mats.
• Integrating seamlessly with existing vertical shaft impactor (VSI) crushing circuits.

Technical Evaluation Dimensions for Procurement

Sizing, Capacity, and Footprint Constraints

Matching the screen deck area to your desired throughput is the first step in technical evaluation. You must calculate tons per hour based on material bulk density and moisture content. Wet, sticky materials have a lower effective screening capacity per square meter than dry materials. The bed depth must remain relatively thin. If the material bed is too thick, the mass of the material dampens the 50G acceleration, and the upper layers will not stratify properly.

Spatial requirements demand strict attention. The dynamic floating frame requires specific headroom and side clearance. Chute configurations must accommodate the aggressive trajectory of the discharged material. The feed box must distribute material evenly across the entire width of the deck. Uneven feeding causes localized wear on the polyurethane mats and unbalances the resonance system.

Polyurethane Mat Specifications

The screen media is the heart of the system. You must evaluate several criteria when selecting mats. Mat thickness determines wear life but directly affects flexibility. A thicker mat lasts longer but requires more energy to stretch and may reduce the G-force transferred to the material. Durometer measures the hardness of the polyurethane. A lower durometer offers more flex and better self-cleaning but wears faster under abrasive loads.

Aperture shapes vary based on the material. Square openings maximize open area. Slotted openings prevent pegging of elongated particles. Round openings provide the most accurate sizing for spherical materials. Fastening mechanisms dictate how quickly maintenance crews can replace worn sections during an outage.

Drive Systems and Stroke Adjustment

Feed conditions rarely remain constant in a real-world processing plant. Evaluating the adjustability of the drive system is vital for long-term success. You need the ability to tune the stroke length and frequency. This is accomplished by adjusting the eccentric shaft or adding and removing unbalanced weights from the flywheels. A heavier, wetter feed requires a longer stroke and higher amplitude to break the surface tension.

A drier, finer feed benefits from a shorter, faster stroke to maximize the number of presentations to the screen apertures. Ensure the equipment allows for these mechanical adjustments without requiring a complete teardown of the drive assembly. Many modern systems integrate variable frequency drives (VFDs) to allow operators to adjust the RPM on the fly, fine-tuning the resonance to match the immediate feed conditions.

Implementation Risks and Mitigation Strategies

Managing Dynamic Loads on Plant Infrastructure

The intense vibration creates significant implementation risks. The double-mass movement generates massive dynamic forces that can cause severe structural fatigue in existing plant steelwork. You cannot simply drop this equipment onto an old support structure designed for a static screen. The harmonic frequencies can align with the natural frequency of the building, causing catastrophic structural failure.

You must perform a dynamic structural analysis using finite element analysis (FEA) before installation. Use heavy-duty isolation springs made of rubber or steel to absorb the excess kinetic energy. You will likely need to design sub-frame reinforcements. Stiffening the support structure with cross-bracing prevents harmonic resonance from tearing the building apart and ensures the kinetic energy stays directed into the material bed.

Maintenance Protocols for Excitation Mechanisms

Premature mechanical failure is a severe risk. Bearings and shear rubber mounts take massive abuse during continuous operation. Improper tensioning or lack of lubrication accelerates this wear rapidly. You must establish strict baseline predictive maintenance routines to protect the equipment.

1. Conduct weekly vibration analysis on the main spherical roller bearings to detect early signs of spalling or cage wear.
2. Inspect the polyurethane mat tension every shift; a loose mat will not flip correctly and will wear out rapidly due to material sliding rather than bouncing.
3. Check the shear rubber mounts monthly for signs of heat degradation, cracking, or delamination.
4. Replace shear rubber mounts in complete sets to maintain balanced energy transfer across the entire width of the frame.
5. Monitor the operating temperature of the eccentric shaft housing to ensure the automatic lubrication system is functioning correctly.

Tuning and Commissioning Challenges

Operating out of phase is a common startup issue. If the system runs off-resonance, you lose the elastic flipping motion entirely. This leads to poor screening efficiency, severe blinding, and high mechanical stress on the cross members. The motors will draw excessive current as they fight the natural frequency of the machine.

You must rely on OEM-guided commissioning. Technicians will balance the masses precisely using specialized diagnostic equipment. They will set the correct operating frequency using the VFDs and verify the stroke angle using strobe lights. Proper tuning ensures the main and floating frames oscillate at the exact required phase angle, maximizing the 50G acceleration while minimizing the electrical load.

Conclusion

1. Conduct a physical material flow test with an equipment manufacturer using a representative sample of your wettest, stickiest feed material.
2. Request a dynamic load footprint document from the vendor to initiate a comprehensive structural engineering review of your existing plant steelwork.
3. Audit your current screen media consumption and manual cleaning labor hours to project future operational savings.
4. Schedule an on-site evaluation to determine the exact spatial constraints, chute trajectories, and feed box distribution requirements for the new installation.

FAQ

Q: What materials are best suited for a flip flow screen?

A: They are ideal for wet, sticky, clay-bound, fibrous, and near-size fine materials. The technology excels at handling difficult feeds typically ranging between 2mm and 20mm. Common applications include raw coal, municipal solid waste, compost, iron ore fines, and damp manufactured sand.

Q: How long do polyurethane flip flow screen mats last?

A: Wear life is highly variable based on material abrasiveness and feed velocity. It generally ranges from 3 to 12 months. Their inherent flexibility reduces direct impact wear compared to rigid steel wire cloth, allowing them to absorb kinetic energy rather than resisting it rigidly.

Q: What is the difference between a flip flow screen and a high-frequency screen?

A: High-frequency screens vibrate a rigid wire mesh rapidly using direct motor attachments. Flip flow screens use a double-mass system to physically stretch and relax a flexible polyurethane mat. This creates much higher localized G-forces and an elastic, self-cleaning motion that rigid meshes cannot achieve.

Q: Can a flip flow screen handle dry, free-flowing materials?

A: Yes, it can process dry materials easily. However, it is generally over-engineered for dry, free-flowing feeds. A standard inclined or horizontal vibrating screen is usually sufficient for those simple applications and requires less structural reinforcement to install.

Q: How does the double mass vibration principle save energy?

A: By operating near the natural resonance frequency of the system, a single drive generates a double vibration. The motor only needs to maintain the kinetic energy stored in the shear rubber mounts. This requires significantly less continuous power than forcing a single heavy mass to vibrate against gravity.

Q: What causes a flip flow screen to lose its self-cleaning ability?

A: Loss of mat tension is the primary cause. Worn or hardened polyurethane media also reduces flexibility. Operating off-resonance due to drive issues, failing shear mounts, or feeding material that heavily exceeds the maximum designed top size will also stop the trampoline effect.
